Radiant Dyes offers a wide range of optomechanical components such as posts, post holders, pedestals and holding forks.

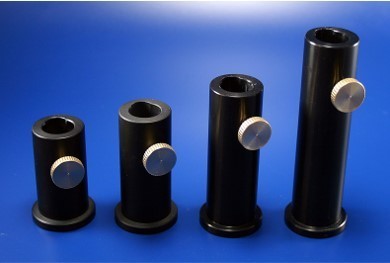

RDS Post holders (including base)

The RDS-post holders (including base) are suitable for post dimensions from 11 to 15 mm diameter. Very stable through a precise three-point-support.                                                                              They are compatible to posts and post holders on the market.

Clearence hole (100% of the height is usable)
Magnetic base (for fast mounting)

Inner lowering for M6 or M8 screws	With M6 thread	Clearance Hole          15 mm	Magnetic Base

RDS-OF / RDS-F Post holder (without base)

RDS-OF

• Post Holder without base
• M6 thread on the bottom
• Suitable for post dimensions from 11 to 15 mm diameter

RDS-F

• Base for RDS-OF
• Height 4,5 mm
• With M6 thread

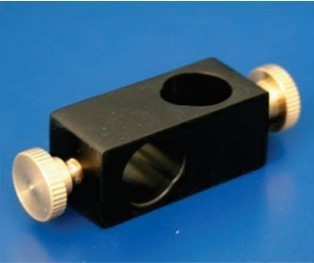

RD-PHC Post holder connector

• 90° connection between two posts
