AO Deflector
![[ Isomet ]<Br>Single/Dual Axis AOD (Blue-Red)](/thum_img/mjct/goods_img3/61c84cc2330436b96ed5f746ec4567ee_water_4de0b559c44a49f5f544fca08f3bc282_c0_w300_h300.jpg)
','','/thum_img/mjct/goods_img3/61c84cc2330436b96ed5f746ec4567ee_water_4de0b559c44a49f5f544fca08f3bc282_c0_w300_h300.jpg'))

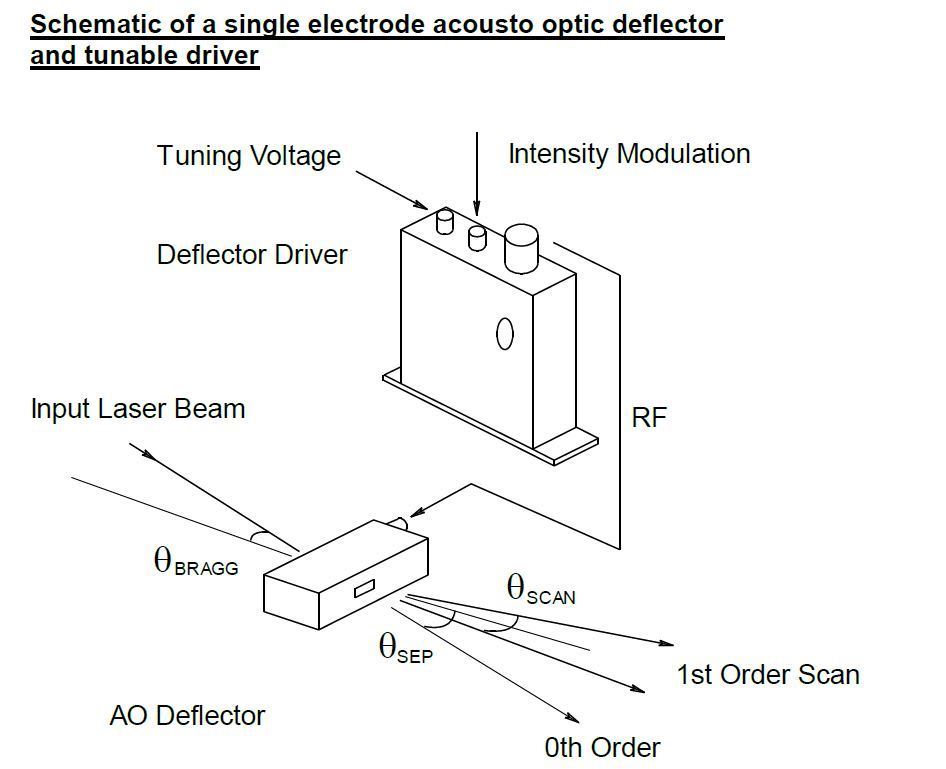

Acousto-Optic Scanning and Deflection
•Fast scan speeds, no moving parts
•Small scan angles, but high repeatability
•Dual Axis capability
*모델명 클릭 시 데이터시트 확인가능
| Model |
A/R Coating (nm) |
Mat'l | Rayleigh Res'n 1 2 | Aperture (mm) HxW | Sweep BW (MHz) | Center Freq. (MHz) | Driver | Feature |
| D55-T80S-2 | VIS | TeO2 (S) | 450 | 2 x 7 | 40 | 80 | Here | |
| D110-T120S-4 | 442-476 | TeO2 (S) | 1100 | 4 x 14 | 50 | 100 | Here | High Res'n |
| D110-T120S-9 | 442-476 | TeO2 (S) | 750 | 9 x 9 | 50 | 100 | Here | Large aperture |
| D110-T100S-4 | VIS | TeO2 (S) | 1100 | 4 x 14 | 50 | 100 | Here | High Res'n |
| D110-T100S-9 | VIS | TeO2 (S) | 750 | 9 | 50 | 100 | Here | Large aperture |
| OAD948-T70S-3 | 633 | TeO2 (S) | 600 | 3 x 8 | 50 | 70 | Here | |
| OAD948-T100S-3 | 488 | TeO2 (S) | 600 | 3 x 8 | 50 | 100 | Here | |
| OAD1020-T100S-2 | 532 | TeO2 (S) | 600 | 2 x 8 | 50 | 100 | Here | |
| D1319-T180L-1p5 | 532 | TeO2 | 50 | 1.5 x 3 | 75 | 180 | Here | High Speed |
| D1340-aQ110-5 | 515/532 | Quartz | 40 | 5 x 7 | 35 | 110 | Here | High Speed |
| D1365-aQ180-4 | 515/532 | Quartz | 40 | 4 x 6 | 60 | 180 | Here | High Pwr |
| D1384-aQ110-7 | 515/532 | Quartz | 25 | 7 | 30 | 110 | Here | High Pwr |

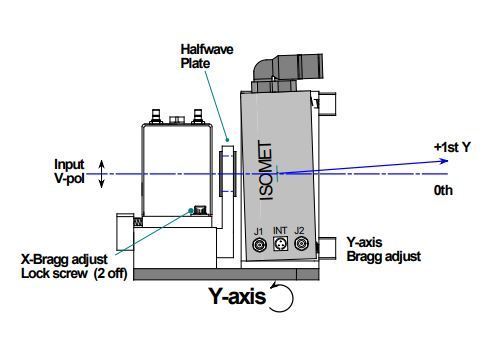

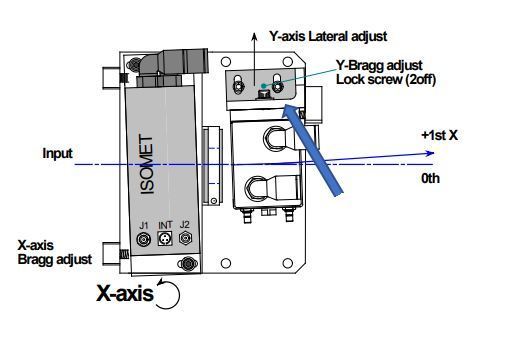

| ODXY1020-T100S-2 | 532 | TeO2 (S) | 150 x 150 | 2 x 2 | 50 | 100 | Here | Dual Axis |
| DXY110-T100S-9 | VIS | TeO2 (S) | 750 x 750 | 9 x 9 | 50 | 100 | Here | Dual Axis |
| D1384-XY-aQ110-7 | 515/532 | Quartz | 25 x 25 | 7 x 7 | 30 | 110 | Here | Dual Axis |
