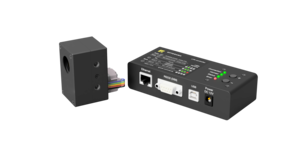

Rotator (MRO) is a compact motorised device for laser polarisation control. The MRO is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm. All optical components of the MRO are made for high LIDT and provide stable and reliable performance even using them with high power lasers in industrial applications.

Main features

• Compact design
• High resolution - 175543 μsteps in 360 deg rotation
• High accuracy - ±10 μsteps (± 0,02 deg)
• Clear aperture - 18 mm
• Fast adjustment - less than 0,2 sec (0 to 45 deg)

What’s in the box?

• Motorised rotator (MRO)
• Controller (SMC)
• Software (LPA)
• Power supply DC 12V (GST60A12-P1J)
• USB cable (1,5 m)
