Achromatic (broadband) waveplates

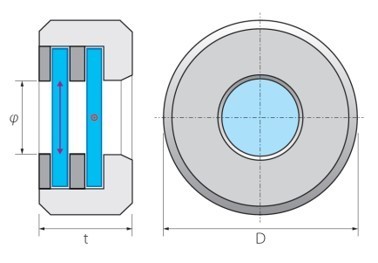

Achromatic (broadband) waveplates (AWP) are a pair of crystalline quartz and magnesium fluoride plates of controlled thickness with crossed fast axes to create a λ/2 or λ/4 delay in the broad wavelength range. The difference in dispersion between materials allows the arrangement of a slow phase shift over a broad wavelength range.
Achromatic waveplates are needed for various devices, such as tunable laser sources, multiple laser line systems, and other broad-spectrum sources. Achromatic (Broadband) waveplates could be used to replace a number of single-wavelength quartz waveplates, making your system more convenient and easier to use.
Typical Items for Achromatic (Broadband) Waveplates
|
Wavelength, nm |
Product ID |
Product ID |
|
340-560 |
2-APW-L2-008Z |
2-APW-L4-008Z |
|
450-650 |
2-APW-L2-008A |
2-APW-L4-008A |
|
550-750 |
2-APW-L2-008B |
2-APW-L4-008B |
|
650-1100 |
2-APW-L2-008C |
2-APW-L4-008C |
|
Wavelength, nm |
Product ID |
Product ID |
|
340-560 |
2-APW-L2-012Z |
2-APW-L4-012Z |
|
450-650 |
2-APW-L2-012A |
2-APW-L4-012A |
|
550-750 |
2-APW-L2-012B |
2-APW-L4-012B |
|
650-1100 |
2-APW-L2-012C |
2-APW-L4-012C |
|
Wavelength, nm |
Product ID |
Product ID |
|
340-560 |
2-APW-L2-018Z |
2-APW-L4-018Z |
|
450-650 |
2-APW-L2-018A |
2-APW-L4-018A |
|
550-750 |
2-APW-L2-018B |
2-APW-L4-018B |
|
650-1100 |
2-APW-L2-018C |
2-APW-L4-018C |
