Piezo Drive
![[ Radiant Dyes ]<br>RD2-16020<br>Piezo controller](/thum_img/mjct/goods_img3/dba3a74e6310c00f1d29fae2dcf56a4c_water_4de0b559c44a49f5f544fca08f3bc282_c0_w300_h300.jpg)
)

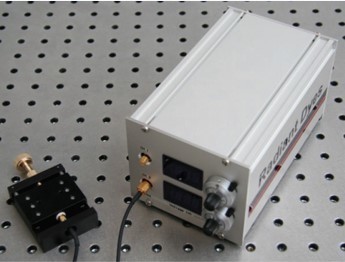

RD2-16020 Piezo controller
The power supply RD2-16020 was developed for two axes positioning of piezo-electrically controlled mirror mounts.
Piezo Driver Datasheet :
|
Power supply |
AC 230V internal |
|
Dimensions H x W x D (mm) |
65 x 110 x x165 |
|

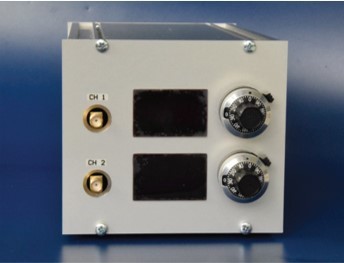

Front panel H x W (mm) |
65 x 110 |
|
Channels |
2 |
|
Output power per channel (W) |
3 |
|
Output current per channel (mA) |
20 |
|
Output voltage (V) |
-10…+150 |
|
Output noise (mV_RMS@500Hz) |
< 0.3 |
|
Output noise amplitude (mV_pp) |
3 (typical) |
|
Output connector for piezo (1) (front side) |
SMA |
|

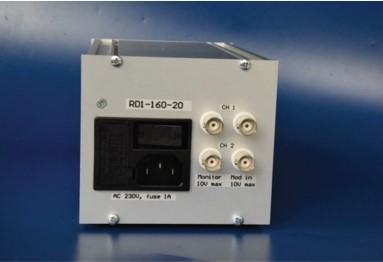

Monitor voltage connector (1) (back side) |
BNC |
|
Monitor voltage (V) |
-0.67…+10 |
|
Modulation input connector (1) (back side) |
BNC |
|
Modulation input (V) |
0…5 |
|
Modulation input resistance (kW) |
1 |
|
Output indicator (1) (front side) |
LED or LCD (max -10.0…+150.0) |
|
Manual adjustment (1) (front side) |
Potentiometer 10 turns, precision |
1) one item per channel

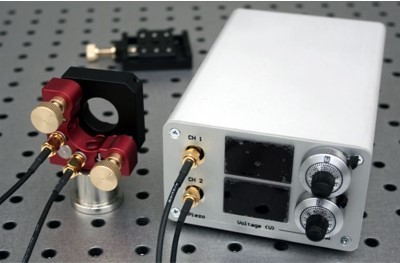

MDI-H with Piezo Drive
The MDI-H with Piezo Drive is a mirror mount which is controlled by a piezo system with our own electronics. Besides a manual adjustment by 0.15mm / 0.25mm per turn, the systems can be adjusted electronically within a µm-range. The piezoelectric actuators are built into the mirror holder. Each of them have the following specifications:
The operation voltage range is -10 V ... +150 V, leading to maximum stroke of >20 µm (typically 23 µm).

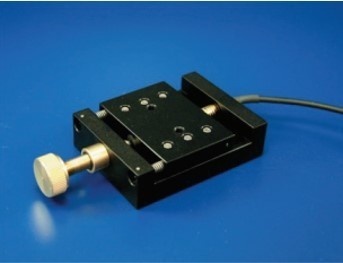

Translation Stage with Piezo Drive
We also offer piezo controlled translation stages.
